Civil Wastewater Treatment
Static Degreaser Grease Separator - aerated with Enzymes
Precast in reinforced concrete
Compliant with the UNI EN 1825 standard
Monoblock Degreaser Civil Residence Grease Separator - Production Activities
Features and operating principle
The concrete Degreaser is used for all activities where a large amount of grease is processed - vegetable and animal oils, degreasers for catering groups, school food service, catering services.
The concrete degreaser or grease condenser is a concrete calming tank where oils, grease and foam can float based on physical separation mechanisms. The concrete degreaser for animal and vegetable oils and fats (sometimes called Degreaser, Deoiler or De-oiler) is installed before the primary treatment system (concrete Imhoff tanks) and organic treatment systems, or right where vegetable and animal oils and fats - as well as detergents - are discharged.
Their removal is necessary before letting in any natural waterbody due to the negative effects on flora and fauna.
Biogas produced during fermentation is released through the side vents next to the inlet opening, which must always be connected and led to the top cover.
Treated wastewater cleaned by the grease separator will flow into the Imhoff tank. The concrete degreaser is effective if installed with the right dimensions (from 50 /100 lt. for Equivalent Inhabitant).
These are also commonly called: grease condensers or trap wells.
A degreaser for restaurant kitchens - also grease condenser - hotels, hospitals, homes, is a concrete calm tank where oils, fats and foams can float based on physical separation principles. The degreaser for oils, animal and vegetable fats is s installed before the primary treatment system (concrete Imhoff tanks) and organic treatment systems, or right where vegetable and animal oils and fats - as well as detergents - from restaurants, canteens, hospitals, hotels, camping areas and holiday resorts are discharged. Their removal is necessary before letting in any natural waterbody due to the negative effects on flora and fauna.
Biogas produced during fermentation is released through the side vents next to the inlet opening, which must always be connected and led to the top cover.
Treated water cleaned by the grease separator will flow into the Imhoff tank.
The concrete degreaser and grease condenser is effective if installed with the correct dimensions (from 50 lt. / meal served per day).
Regularly check the grease layer and crust level accumulated in the tank from the specific inspection holes; Cleaning shall be performed, with frequency depending on the oil, grease and detergent load in the incoming water), by a specialized company - gully emptier - that can issue specific documents and the cleaning frequency will depend on the oil, grease and cleaning agents load in the incoming waste water. The cleaning company's documents will have to be preserved for at least 5 years with the system itself; Perform cleaning through the specific inspection holes.
Product disposal will have to be performed in full compliance with the environmental regulations in force when disposing of the product. The Client shall be fully aware of the prescribed procedures defined based on the current regulations and therefore hold Edil Impianti 2 S.r.l. harmless from any disposal issue.
Degreaser prices for restaurants and residential purposes by Edilimpianti include inlets and outlets, PVC tube fittings with waterproof elastomer rubber gaskets, PVC stilling baffles, vents with fitting and PVC sleeve sealing, suitable internal epoxy resin coating and external coating.
The commercial semi-finished degreaser prices do not include all of the necessary components to complete the finished product, the final prices will be calculated by the company or technician and can be compared with a completely finished degreaser. Precast concrete degreasers do not need any external reinforcement if compared to polyethylene or plastic degreasers, nor do they need to be filled with water during the installation, but, most importantly, they do not break during maintenance operations and crust removal and inspections are thorough to clean the degreaser everywhere.
Dimensions
Dimensions for Civil Residence / Restaurants / Hotels / Canteens / Catering Services:
For Civil Residence with lt. 50 - 25 per population equivalent;
For Manufacturing Activities with lt. 25 - 20 - 15 per meal/day.
Fields of application
Civil residence systems, slaughterhouses, wine cellars, cheese factories, food industry, conservation industry, pasta manufacturers, pastry manufacturers, fish industry, laundry services, civil residence, blocks, restaurants, hotels, hospitals, communities, canteens, catering services, schools, bars, camping sites, bathing establishments, service stations, meal production centers.
Suggestions and technical information
The Degreaser and the concrete Imhoff Tank are a primary pre-treatment and, in case it is required by the executive project or the authorization to drain, they must be integrated with secondary treatment systems such as: biodiscs, activated sludges, phytopurification with vertical or horizontal flow, MBBR, SBR, aerobic and anaerobic percolator filters.
Regulation
Leg. Decree 152/06 and resolution of the Emilia-Romagna Regional Council 1053/2003 domestic wastewater not discharged into public sewers, discharge into surface water.
HOW TO CALCULATE THE POPULATION EQUIVALENT (P.E.)
CIVIL RESIDENCE counting beds: 1 P. E. for bedrooms with up to 13.90 sqm surface; 2 P. E. for bedrooms with over 14 sqm surface.
HOTEL or ACCOMMODATION STRUCTURE the same as for civil residence, just add 1 P. E. when the room surface is +6 sqm over 14 sqm.
for vacation structures or special situations where the seasonal use causes strong population density, it is necessary to consider the maximum effective potential of the structure.
RESTAURANTS to calculate the population equivalent, it is necessary to estimate the maximum accommodation capacity of the dining rooms, considering that a person takes around 1.20 sqm, together with the guests, you have to count the staff as well.
1 P.E. every 3 people.
Technology
For any residential unit or production plant where meals are provided and dishes washed, it is recommended to have wastewater and WC (sewage water) lines separated from sink, washbasin, shower, washing machines, dishwasher (grey water) lines.
Sewage water must be sent directly into the Imhoff tank, whereas grey waters with oil, grease and detergents must be sent into the static grease separator first and then into the Imhoff tank or directly into the public sewage system, if connected with the local authority water purification plant.
DIMENSIONING WITH WATER SUPPLY STARTING FROM MIN. 20 LT. UP TO 50 LT.
Degreasers must have a water supply of at least 20 lt. per meal served/ a day for kitchen waters in companies, restaurants, hotels, canteens, whereas degreasers for civil residence at least 50 lt. per Population Equivalent as per Regional Resolution No. 1053 of June 2003.
Degreasers with smaller volumes cause management problems for the user, as maintenance interventions are required more frequently, thus causing interruptions during maximum productivity time. Therefore, concrete degreasers are crucial, but most importantly degreasers must be the right size to avoid problems and cost increase for the user.
For correct functioning, some construction requirements are necessary: the partition wall between the upper compartment (oil and grease collector) must have a variable height between 1/2 and 1/4 if compared to the tank water column height, whereas the ratio between surface area and water column height must have a minimum 0.35 sqm/mt value for grease condensers having up to 1000 lt capacity and a minimum 1 sqm/mt value for capacities over 1000 lt.
Supply specifications
Supply and installation of Underground Static Degreaser / Grease Separator for Residential Housing (kitchens), CE marked, produced in DECLARED SERIES, code DEGSEPC___ or SEPGRA-MK__ (Miniblock version), compliant with UNI EN 1825-1 standard, with external dimensions of ____x____xh____ cm, nominal size NS____ l/s, useful volume _____ l, N°____ P.E. (50 liters x P.E. Emilia Romagna region), N°____ P.E. (25 liters x P.E.), produced with UNI EN ISO 9001 and ISO 45001 management systems, made of monobloc reinforced concrete (R.C.) with CE certified materials and recycled content according to the requirements indicated in the Minimum Environmental Criteria (CAM), concrete compressive strength class C45/55 (RCK >55 N/mm²), compliant with the provisions of UNI EN 206-1 and UNI 11104 for exposure classes XC4, XS3-XD3, XF1, XA2, internal reinforcement with high-bond steel, GREESMIX5® steel fibers (if provided), IDROCONCRETE 1200® crystallizing additive for integral waterproof concrete (if provided), accompanied by Chemical Resistance and Reaction to Fire certifications issued by an external body according to UNI EN standards, reinforced with vertical R.C. columns and stainless steel horizontal struts where provided, with Elastocolor protective anti-crack elastomeric painting of the external concrete walls with permanent high elasticity and high chemical resistance.
The CE marked Static Grease Interceptor / Grease Separator for Residential Housing is supplied complete with:
inlet/outlet indentations/drilling; air vent indentations/holes placed laterally to the inlet hole; separation baffle/s for the formation of two-chamber or three-chamber compartments.
View accessories related to the Specifications
Configure the Supply Specification with the related accessories.
Static Degreaser Dimensions / Grease Separator for Civil Residence
Emilia-Romagna region - Umbria Region, with 50 lt / P.E. (Population Equivalent)
Download Technical Drawings
Select Article Code to access the Data Sheet for the product.
| Article Code |
NS (Nominal Dimension) |
Usable Volume (lt) |
lt.25 for P.E. |
lt.50 for P.E. |
External Dimensions Degreaser (cm) |
Tank Weight (ql) |
Cover slab weight (ql) | ||||
| Width | Length | Height | h. 10 cm (B125) |
h. 15 cm (C250) |
h. 20 cm (D400) |
||||||
| DEGSEPCB1A | 0,5 | 150 | 6 | 3 | 70 | 70 | 75 | 3,8 | 0,9 | 1,8 | - |
| DEGSEPCB2 | 0,7 | 250 | 10 | 5 | 70 | 70 | 90 | 4,3 | 0,9 | 1,8 | - |
| DEGSEPCB_080 | 1,0 | 300 | 12 | 6 | 80 | 80 | 85 | 4,1 | 1,3 | 2,4 | 3,2 |
| DEGSEPCB2B | 1,0 | 400 | 16 | 8 | 90 | 90 | 75 | 4,3 | 1,6 | 3,2 | 4,0 (on request) |
| DEGSEPCB2C | 1,2 | 500 | 20 | 10 | 90 | 90 | 100 | 5,6 | 1,6 | 3,2 | 4,0 (on request) |
| DEGSEPCB2D | 1,5 | 600 | 24 | 12 | 100 | 100 | 100 | 6,4 | 2,5 | 3,7 | 5,0 |
| DEGSEPCB3B | 2,5 | 850 | 34 | 17 | 125 | 130 | 100 | 12,9 | 4,0 | 6,1 | 8,1 |
| DEGSEPCB4 | 2,7 | 1.250 | 50 | 25 | 125 | 130 | 130 | 15,8 | 4,0 | 6,1 | 8,1 |
| DEGSEPCB5 | 3 | 1.500 | 60 | 30 | 125 | 130 | 150 | 17,5 | 4,0 | 6,1 | 8,1 |
| DEGSEPCB5A | 4 | 1.750 | 70 | 35 | 125 | 180 | 130 | 19,3 | 5,6 | 8,4 | 11,2 |
| DEGSEPCB6 | 5 | 2.150 | 86 | 43 | 125 | 180 | 150 | 21,4 | 5,6 | 8,4 | 11,2 |
| DEGSEPCB7B | 6 | 2.500 | 100 | 50 | 175 | 180 | 130 | 24,2 | 7,8 | 11,7 | 15,6 |
| DEGSEPCB7 | 7 | 3.000 | 120 | 60 | 175 | 180 | 150 | 26,7 | 7,8 | 11,7 | 15,6 |
| DEGSEPCB8 | 10 | 4.000 | 160 | 80 | 180 | 240 | 150 | 52,4 | 10,7 | 16,1 | 21,5 |
| DEGSEPCT9 | 13 | 5.000 | 200 | 100 | 180 | 300 | 150 | 65,4 | 13,4 | 20,1 | 26,8 |
| DEGSEPCB9A | 10 | 4.000 | 160 | 80 | 180 | 180 | 200 | 54,9 | 8,0 | 12,1 | 16,1 |
| DEGSEPCB9B | 13 | 5.000 | 200 | 100 | 180 | 220 | 200 | 61,8 | 9,8 | 14,8 | 19,7 |
| DEGSEPCT10 | 15 | 6.200 | 248 | 124 | 180 | 270 | 200 | 76,0 | 12,1 | 18,1 | 24,1 |
| DEGSEPCT10A | 17 | 7.500 | 300 | 150 | 180 | 320 | 200 | 84,4 | 14,3 | 21,5 | 28,6 |
| DEGSEPCT11A | 20 | 9.000 | 360 | 180 | 180 | 370 | 200 | 92,8 | 16,5 | 24,8 | 33,1 |
| DEGSEPCB13D | 15 | 7.000 | 280 | 140 | 246 | 220 | 200 | 78,7 | 13,4 | 20,2 | 26,9 |
| DEGSEPCB13E | 18 | 9.000 | 360 | 180 | 246 | 270 | 200 | 88,6 | 16,5 | 24,7 | 33,0 |
| DEGSEPCT14B | 20 | 10.500 | 420 | 210 | 246 | 320 | 200 | 106,9 | 19,6 | 29,3 | 39,1 |
| DEGSEPCT15B | 25 | 12.500 | 500 | 250 | 246 | 370 | 200 | 116,8 | 22,6 | 33,9 | 45,2 |
| DEGSEPCT16B | 30 | 14.000 | 560 | 280 | 246 | 420 | 200 | 126,7 | 25,7 | 38,5 | 51,3 |
| DEGSEPCT17B | 35 | 16.000 | 640 | 320 | 246 | 470 | 200 | 140,8 | 28,7 | 43,1 | 57,4 |
| DEGSEPCT18B | 40 | 18.000 | 720 | 360 | 246 | 520 | 200 | 150,7 | 31,8 | 47,7 | 63,6 |
| DEGSEPCT19B | 45 | 20.000 | 800 | 400 | 246 | 570 | 200 | 160,6 | 34,8 | 52,2 | 69,7 |
| DEGSEPCT20B | 50 | 21.000 | 840 | 420 | 246 | 620 | 200 | 170,6 | 37,9 * | 56,8 * | 75,8 * |
| DEGSEPCT21B | 55 | 22.700 | 908 | 454 | 246 | 670 | 200 | 180,5 | 40,9 * | 61,4 * | 81,9 * |
| DEGSEPCT22B | 60 | 24.500 | 980 | 490 | 246 | 720 | 200 | 194,7 | 44,0 * | 66,0 * | 88,0 * |
| DEGSEPCT23B | 65 | 26,000 | 1.040 | 520 | 246 | 770 | 200 | 204,6 | 47,1 * | 70,6 * | 94,1 * |
| DEGSEPCT24B | 70 | 28.000 | 1.120 | 560 | 246 | 820 | 200 | 214,5 | 50,1 * | 75,2 * | 100,2 * |
| DEGSEPCT25B | 75 | 29.500 | 1.180 | 590 | 246 | 870 | 200 | 224,4 | 53,2 * | 79,7 * | 106,3 * |
| DEGSEPCT26B | 80 | 31.500 | 1.260 | 630 | 246 | 920 | 200 | 234,3 | 56,2 * | 84,3 * | 112,4 * |
| DEGSEPCT27B | 86 | 33.000 | 1.320 | 660 | 246 | 970 | 200 | 248,4 | 59,3 * | 88,9 * | 118,5 * |
| DEGSEPCT28B | 90 | 35.000 | 1.400 | 700 | 246 | 1020 | 200 | 258,2 | 62,3 * | 93,5 * | 124,7 * |
* Cover Slab divided into two parts
The data reported is purely indicative
Supply specifications
Supply and installation of Underground Static Degreaser / Grease Separator for Commercial/Industrial activities (kitchens, restaurants, canteens, hospitals), CE marked, produced in DECLARED SERIES, code DEGSEPR___ or SEPGRA-MK__ (Miniblock version), compliant with UNI EN 1825-1 standard, with external dimensions of ____x____xh____ cm, nominal size NS____ l/s, useful volume _____ l, No. of meals-covers/day ___ (25 liters x meals-covers/day), No. of meals-covers/day ___ (20 liters x meals-covers/day), No. of meals-covers/day ___ (15 liters x meals-covers/day), produced with UNI EN ISO 9001 and ISO 45001 management systems, made of monobloc reinforced concrete (R.C.) with CE certified materials and recycled content according to the requirements indicated in the Minimum Environmental Criteria (CAM), concrete compressive strength class C45/55 (RCK >55 N/mm²), compliant with the provisions of UNI EN 206-1 and UNI 11104 for exposure classes XC4, XS3-XD3, XF1, XA2, internal reinforcement with high-bond steel, GREESMIX5® steel fibers (if provided), IDROCONCRETE 1200® crystallizing additive for integral waterproof concrete (if provided), accompanied by Chemical Resistance and Reaction to Fire certifications issued by an external body according to UNI EN standards, reinforced with vertical R.C. columns and stainless steel horizontal struts where provided, with Elastocolor protective anti-crack elastomeric painting of the external concrete walls with permanent high elasticity and high chemical resistance.
The CE marked Static Grease Interceptor / Grease Separator for Commercial/Industrial activities is supplied complete with:
inlet/outlet indentations/drilling; air vent indentations/holes placed laterally to the inlet hole; separation baffle/s for the formation of two-chamber or three-chamber compartments.
View accessories related to the Specifications
Configure the Supply Specification with the related accessories.
Static Degreaser Dimensions / Grease Separator for Production Activities
Download Technical Drawings
Select Article Code to access the Data Sheet for the product.
| Article Code |
NS (Nominal Dimension) |
Usable Volume (lt) |
lt. 7 daily Meal (n) |
lt. 15 daily Meal (n) |
lt. 20 daily Meal (n) |
lt. 25 daily Meal (n) |
External Dimensions Degreaser (cm) |
Tank Weight (ql) |
Cover slab weight (ql) | ||||
| Width | Length | Height | h. 10 cm (B125) |
h. 15 cm (C250) |
h. 20 cm (D400) |
||||||||
| DEGSEPRB0 | 0,7 | 250 | 35 | 16 | 12 | 10 | 70 | 70 | 90 | 4,3 | 0,9 | 1,8 | - |
| DEGSEPRB_080 | 1,0 | 300 | 42 | 20 | 15 | 12 | 80 | 80 | 85 | 4,1 | 1,3 | 2,4 | 3,2 |
| DEGSEPRB0A | 1,0 | 400 | 51 | 26 | 20 | 16 | 90 | 90 | 75 | 4,3 | 1,6 | 3,2 | 4,0 (on request) |
| DEGSEPRB0B | 1,2 | 500 | 71 | 33 | 25 | 20 | 90 | 90 | 100 | 5,6 | 1,6 | 3,2 | 4,0 (on request) |
| DEGSEPRB0C | 1,5 | 600 | 85 | 40 | 30 | 24 | 100 | 100 | 100 | 6,4 | 2,5 | 3,7 | 5,0 |
| DEGSEPRB1A | 2,5 | 850 | 121 | 56 | 42 | 34 | 125 | 130 | 100 | 12,9 | 4,0 | 6,1 | 8,1 |
| DEGSEPRB2 | 2,7 | 1.250 | 178 | 83 | 62 | 50 | 125 | 130 | 130 | 15,8 | 4,0 | 6,1 | 8,1 |
| DEGSEPRB5 | 3 | 1.500 | 214 | 100 | 75 | 60 | 125 | 130 | 150 | 17,5 | 4,0 | 6,1 | 8,1 |
| DEGSEPRB6A | 4 | 1.750 | 250 | 116 | 87 | 70 | 125 | 180 | 130 | 19,3 | 5,6 | 8,4 | 11,2 |
| DEGSEPRB6 | 5 | 2.150 | 307 | 143 | 107 | 86 | 125 | 180 | 150 | 21,4 | 5,6 | 8,4 | 11,2 |
| DEGSEPRB7B | 6 | 2.500 | 357 | 166 | 125 | 100 | 175 | 180 | 130 | 24,2 | 7,8 | 11,7 | 15,6 |
| DEGSEPRB7 | 7 | 3.000 | 428 | 200 | 150 | 120 | 175 | 180 | 150 | 26,7 | 7,8 | 11,7 | 15,6 |
| DEGSEPRB8 | 10 | 4.000 | 571 | 266 | 200 | 160 | 180 | 240 | 150 | 52,4 | 10,7 | 16,1 | 21,5 |
| DEGSEPRT9 | 13 | 5.000 | 714 | 333 | 250 | 200 | 180 | 300 | 150 | 65,4 | 13,4 | 20,1 | 26,8 |
| DEGSEPRB9A | 10 | 4.000 | 571 | 266 | 200 | 160 | 180 | 180 | 200 | 54,9 | 8,0 | 12,1 | 16,1 |
| DEGSEPRB9B | 13 | 5.000 | 714 | 333 | 250 | 200 | 180 | 220 | 200 | 61,8 | 9,8 | 14,8 | 19,7 |
| DEGSEPRT10 | 15 | 6.200 | 885 | 413 | 310 | 248 | 180 | 270 | 200 | 76,0 | 12,1 | 18,1 | 24,1 |
| DEGSEPRT10A | 17 | 7.500 | 1.071 | 500 | 375 | 300 | 180 | 320 | 200 | 84,4 | 14,3 | 21,5 | 28,6 |
| DEGSEPRT11A | 20 | 9.000 | 1.285 | 600 | 450 | 360 | 180 | 370 | 200 | 92,8 | 16,5 | 24,8 | 33,1 |
| DEGSEPRB13D | 15 | 7.000 | 1.000 | 466 | 350 | 280 | 246 | 220 | 200 | 78,7 | 13,4 | 20,2 | 26,9 |
| DEGSEPRB13E | 18 | 9.000 | 1.285 | 600 | 450 | 360 | 246 | 270 | 200 | 88,6 | 16,5 | 24,7 | 33,0 |
| DEGSEPRT14B | 20 | 10.500 | 1.500 | 700 | 525 | 420 | 246 | 320 | 200 | 106,9 | 19,6 | 29,3 | 39,1 |
| DEGSEPRT15B | 25 | 12.500 | 1.785 | 833 | 635 | 500 | 246 | 370 | 200 | 116,8 | 22,6 | 33,9 | 45,2 |
| DEGSEPRT16B | 30 | 14.000 | 2.000 | 933 | 700 | 560 | 246 | 420 | 200 | 126,7 | 25,7 | 38,5 | 51,3 |
| DEGSEPRT17B | 35 | 16.000 | 2.285 | 1.066 | 800 | 640 | 246 | 470 | 200 | 140,8 | 28,7 | 43,1 | 57,4 |
| DEGSEPRT18B | 40 | 18.000 | 2.571 | 1.200 | 900 | 720 | 246 | 520 | 200 | 150,7 | 31,8 | 47,7 | 63,6 |
| DEGSEPRT19B | 45 | 20.000 | 2.857 | 1.333 | 1.000 | 800 | 246 | 570 | 200 | 160,6 | 34,8 | 52,2 | 69,7 |
| DEGSEPRT20B | 50 | 21.000 | 3.000 | 1.400 | 1.050 | 840 | 246 | 620 | 200 | 170,6 | 37,9 * | 56,8 * | 75,8 * |
| DEGSEPRT21B | 55 | 22.700 | 3.242 | 1.513 | 1.135 | 908 | 246 | 670 | 200 | 180,5 | 40,9 * | 61,4 * | 81,9 * |
| DEGSEPRT22B | 60 | 24.500 | 3.500 | 1.633 | 1.225 | 980 | 246 | 720 | 200 | 194,7 | 44,0 * | 66,0 * | 88,0 * |
| DEGSEPRT23B | 65 | 26.000 | 3.714 | 1.733 | 1.300 | 1.040 | 246 | 770 | 200 | 204,6 | 47,1 * | 70,6 * | 94,1 * |
| DEGSEPRT24B | 70 | 28.000 | 4.000 | 1.866 | 1.400 | 1.120 | 246 | 820 | 200 | 214,5 | 50,1 * | 75,2 * | 100,2 * |
| DEGSEPRT25B | 75 | 29.500 | 4.214 | 1.966 | 1.475 | 1.180 | 246 | 870 | 200 | 224,4 | 53,2 * | 79,7 * | 106,3 * |
| DEGSEPRT26B | 80 | 31.500 | 4.500 | 2.100 | 1.575 | 1.260 | 246 | 920 | 200 | 234,3 | 56,2 * | 84,3 * | 112,4 * |
| DEGSEPRT27B | 86 | 33.000 | 4.714 | 2.200 | 1.650 | 1.320 | 246 | 970 | 200 | 248,4 | 59,3 * | 88,9 * | 118,5 * |
| DEGSEPRT28B | 90 | 35.000 | 5.000 | 2.333 | 1.750 | 1.400 | 246 | 1020 | 200 | 258,2 | 62,3 * | 93,5 * | 124,7 * |
| DEGSEPRB12 | 18 | 9.200 | 1.314 | 613 | 460 | 368 | 246 | 220 | 250 | 93,3 | 13,4 | 20,2 | 26,9 |
| DEGSEPRB13 | 23 | 11.500 | 1.642 | 766 | 575 | 460 | 246 | 270 | 250 | 104,5 | 16,5 | 24,7 | 33,0 |
| DEGSEPRT14 | 33 | 15.000 | 2.142 | 1.000 | 750 | 600 | 246 | 320 | 250 | 126,8 | 19,6 | 29,3 | 39,1 |
| DEGSEPRT15 | 35 | 16.000 | 2.285 | 1.066 | 800 | 640 | 246 | 370 | 250 | 138,0 | 22,6 | 33,9 | 45,2 |
| DEGSEPRT16 | 40 | 18.500 | 2.642 | 1.233 | 925 | 740 | 246 | 420 | 250 | 149,2 | 25,7 | 38,5 | 51,3 |
| DEGSEPRT17 | 50 | 21.000 | 3.000 | 1.400 | 1.050 | 840 | 246 | 470 | 250 | 165,8 | 28,7 | 43,1 | 57,4 |
| DEGSEPRT18 | 55 | 23.000 | 3.285 | 1.533 | 1.150 | 920 | 246 | 520 | 250 | 177,0 | 31,8 | 47,7 | 63,6 |
| DEGSEPRT19 | 65 | 25.500 | 3.642 | 1.700 | 1.275 | 1.020 | 246 | 570 | 250 | 188,2 | 34,8 | 52,2 | 69,7 |
| DEGSEPRT20 | 70 | 28.000 | 4.000 | 1.866 | 1.400 | 1.120 | 246 | 620 | 250 | 199,4 | 37,9 * | 56,8 * | 75,8 * |
| DEGSEPRT21 | 75 | 30.000 | 4.285 | 2.000 | 1.500 | 1.200 | 246 | 670 | 250 | 210,5 | 40,9 * | 61,4 * | 81,9 * |
| DEGSEPRT22 | 80 | 32.000 | 4.571 | 2.133 | 1.600 | 1.280 | 246 | 720 | 250 | 227,1 | 44,0 * | 66,0 * | 88,0 * |
| DEGSEPRT23 | 90 | 35.000 | 5.000 | 2.333 | 1.750 | 1.400 | 246 | 770 | 250 | 238,3 | 47,1 * | 70,6 * | 94,1 * |
| DEGSEPRT24 | 95 | 37.000 | 5.285 | 2.466 | 1.850 | 1.480 | 246 | 820 | 250 | 249,5 | 50,1 * | 75,2 * | 100,2 * |
| DEGSEPRT25 | 100 | 39.000 | 5.571 | 2.600 | 1.950 | 1.560 | 246 | 870 | 250 | 260,7 | 53,2 * | 79,7 * | 106,3 * |
| DEGSEPRT26 | 107 | 41.500 | 5.928 | 2.766 | 2.075 | 1.660 | 246 | 920 | 250 | 271,9 | 56,2 * | 84,3 * | 112,4 * |
| DEGSEPRT27 | 114 | 44.000 | 6.285 | 2.933 | 2.200 | 1.760 | 246 | 970 | 250 | 288,5 | 59,3 * | 88,9 * | 118,5 * |
| DEGSEPRT28 | 120 | 46.000 | 6.571 | 3.066 | 2.300 | 1.840 | 246 | 1020 | 250 | 299,6 | 62,3 * | 93,5 * | 124,7 * |
| DEGSEPRM30A | 130 | 50.000 | 7.142 | 3.333 | 2.500 | 2.000 | 246 | 870 | 300 | 266,3 | 53,2 * | 79,7 * | 106,3 * |
| DEGSEPRM31A | 133 | 51.000 | 7.285 | 3.400 | 2.550 | 2.040 | 246 | 920 | 300 | 286,5 | 56,2 * | 84,3 * | 112,4 * |
| DEGSEPRM32A | 144 | 55.000 | 7.857 | 3.666 | 2.750 | 2.200 | 246 | 970 | 300 | 298,8 | 59,3 * | 88,9 * | 118,5 * |
| DEGSEPRM33A | 152 | 58.000 | 8.285 | 3.866 | 2.900 | 2.320 | 246 | 1020 | 300 | 311,1 | 62,3 * | 93,5 * | 124,7 * |
* Cover Slab divided into two parts
The data reported is purely indicative
Static Degreaser Measurements / Grease Separator - Miniblock version
Civil Residence (lt. 50xE.P.) e Production Activities (lt.10/15 meal/day)
Download Technical Drawings
Select Article Code to access the Data Sheet for the product.
| Article Code |
NS (Nominal Dimension) |
Usable Volume (lt) |
lt.50 for P.E. |
lt. 7 daily Meal (n) |
lt. 10 daily Meal (n) |
lt. 15 daily Meal (n) |
External Dimensions Oils & Grease Separator (cm) |
Tank Weight (ql) |
Cover slab weight (ql) | ||||
| Width | Length | Height | h. 10 cm (B125) |
h. 15 cm (C250) |
h. 20 cm (D400) |
||||||||
| SEPGRA-MK1A | 2,5 | 1.000 | 20 | 142 | 100 | 66 | 120 | 170 | 100 | 22,0 | 5,0 | 8,0 | 10,0 |
| SEPGRA-MK2A | 3 | 1.300 | 26 | 185 | 130 | 86 | 120 | 220 | 100 | 26,0 | 7,0 | 10,0 | 13,0 |
| SEPGRA-MK3A | 4 | 1.600 | 32 | 228 | 160 | 106 | 120 | 270 | 100 | 31,0 | 8,0 | 12,0 | 16,0 |
| SEPGRA-MK4A | 5 | 2.000 | 40 | 285 | 200 | 133 | 120 | 320 | 100 | 35,0 | 10,0 | 14,0 | 19,0 |
| SEPGRA-MK1B | 4 | 1.700 | 34 | 242 | 170 | 113 | 120 | 170 | 150 | 30,0 | 5,0 | 8,0 | 10,0 |
| SEPGRA-MK2B | 5 | 2.300 | 46 | 328 | 230 | 153 | 120 | 220 | 150 | 36,0 | 7,0 | 10,0 | 13,0 |
| SEPGRA-MK3B | 7 | 2.900 | 58 | 414 | 290 | 193 | 120 | 270 | 150 | 42,0 | 8,0 | 12,0 | 16,0 |
| SEPGRA-MK4B | 8 | 3.400 | 68 | 485 | 340 | 226 | 120 | 320 | 150 | 47,0 | 10,0 | 14,0 | 19,0 |
| SEPGRA-MK1C | 6 | 2.500 | 50 | 357 | 250 | 166 | 120 | 170 | 205 | 39,0 | 5,0 | 8,0 | 10,0 |
| SEPGRA-MK2C | 8 | 3.400 | 68 | 485 | 340 | 226 | 120 | 220 | 205 | 46,0 | 7,0 | 10,0 | 13,0 |
| SEPGRA-MK3C | 10 | 4.200 | 84 | 600 | 420 | 280 | 120 | 270 | 205 | 53,0 | 8,0 | 12,0 | 16,0 |
| SEPGRA-MK4C | 13 | 5.100 | 102 | 728 | 510 | 340 | 120 | 320 | 205 | 60,0 | 10,0 | 14,0 | 19,0 |
The data reported is purely indicative
Static Degreaser / Grease Separator Aerated with Enzymes
for Manufacturing Activities, Bakeries, Meal preparation centers
Technical Description
Conversion/Integration kit for static grease trap into aerated grease trap with bacterial-enzymatic dosing;
Supply of electromechanical conversion kit designed for upgrading a pre-delivery static grease trap into an aerated treatment system, complete with programmable bacterial-enzymatic blend dosing.
The intervention is aimed at the controlled introduction of oxygen and the mixing of sewage within the structure, creating favorable conditions for the development and maintenance of aerobic biomass. The simultaneous timed dosing of the bacterial-enzymatic blend supports the biological degradation processes of organic substances and fat residues of animal and vegetable origin, contributing to organic load management and the limitation of septic phenomena.
The system is conceived as a functional integration of the grease trap and does not replace the necessary operation, emptying, periodic removal of sludge and floating materials, cleaning, and maintenance activities required for the specific installation.
Gravity separation of fats and oils of animal and vegetable origin forms the operating principle of grease traps governed by the EN 1825 series; however, the standard does not regulate the use of biological agents such as bacteria and enzymes. The adoption of biological dosing should therefore be intended as a process and management implementation, to be defined in relation to the qualitative and quantitative characteristics of the wastewater and the requirements of the discharge authority.
Supply composition (can be configured in combination with Grease Traps for Commercial/Industrial Activities);
The kit includes the following main components:

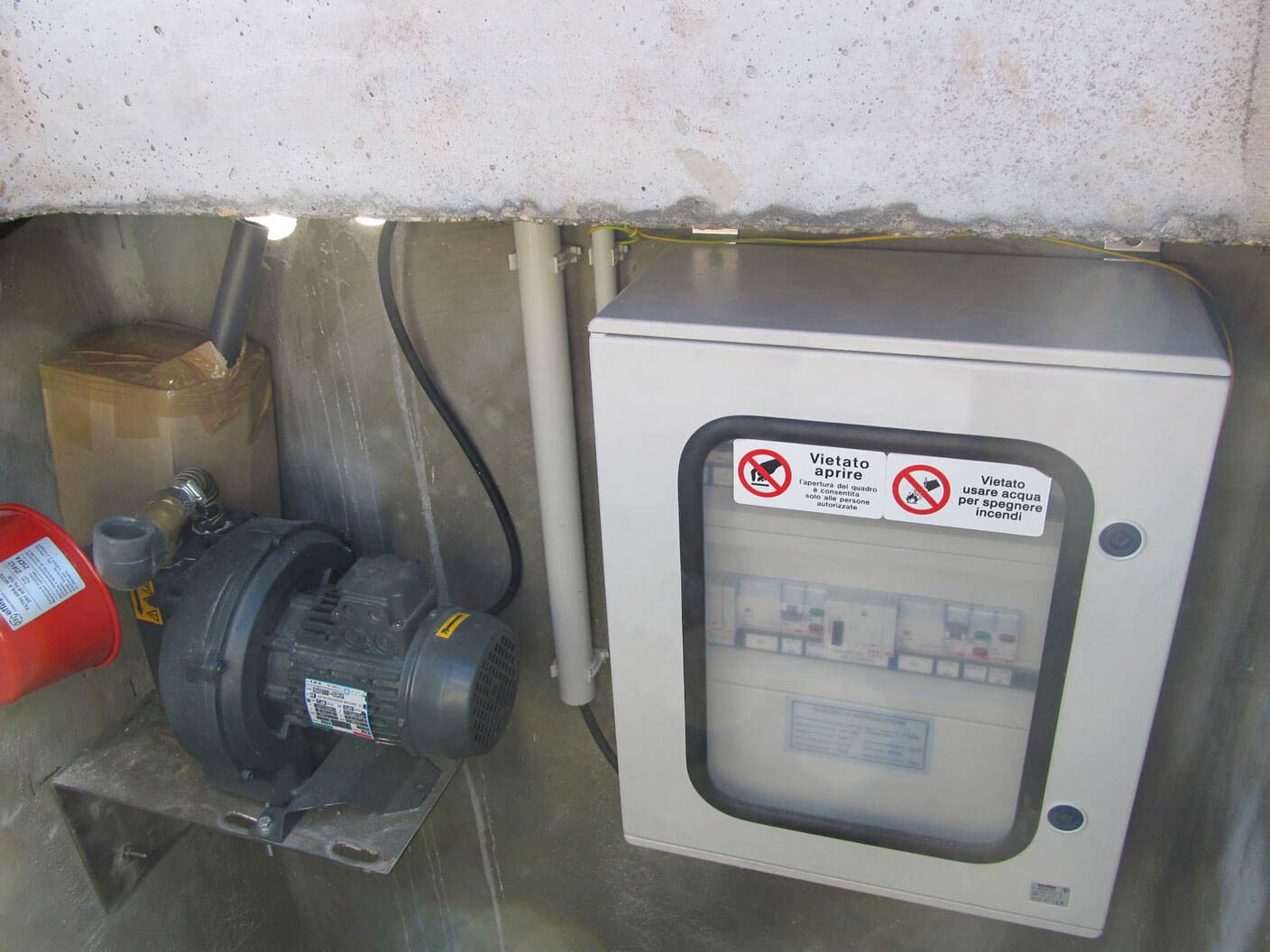

- Side channel blower, nominal power 0.55 kW, model SCL-15DH, complete with suction filter model FL2, for supplying the submerged aeration circuit.

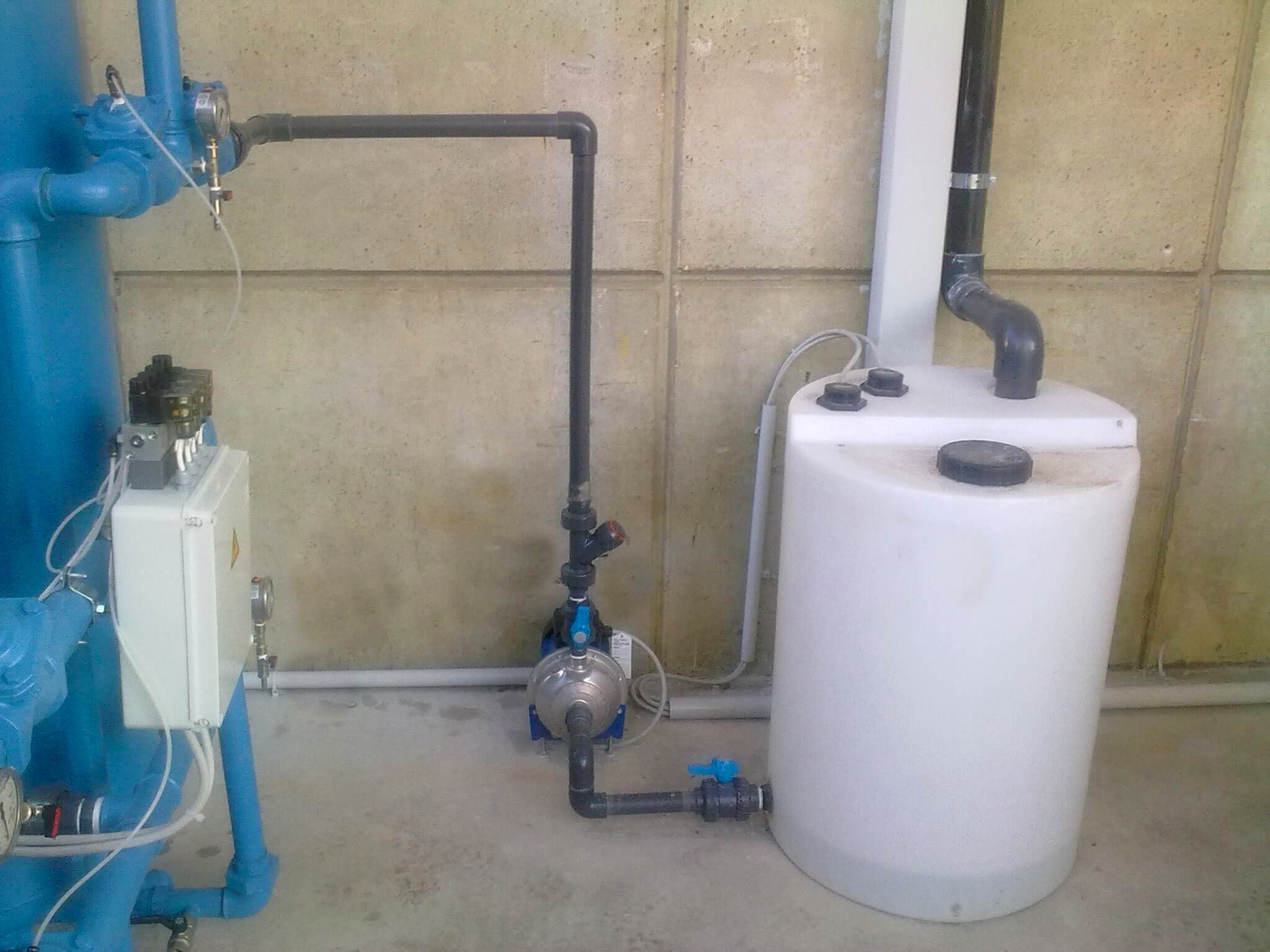

- Hyperion bacterial-enzymatic charge dosing system, nominal flow rate 2 l/h, power supply 230 V, complete with hourly programming functionality for controlled product delivery.
- Electric power, control and system management panel, equipped with PLC logic and Touch interface, designed to manage aeration and dosing cycles according to set programming.

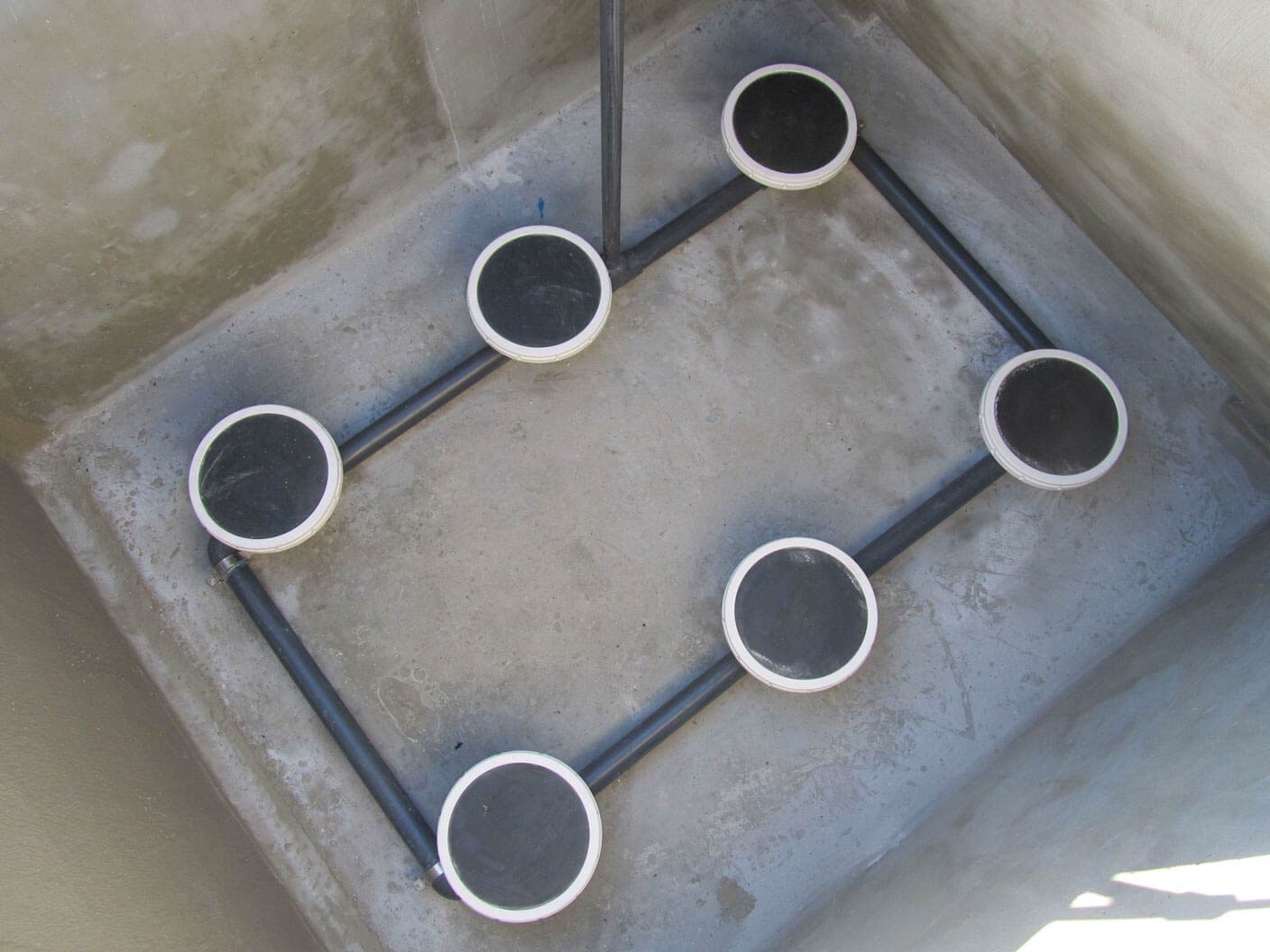

- Submerged fine bubble aeration system, realized via 9” OXYPLATE diffusers equipped with EPDM membrane.
- Manifolds, piping, fittings, valves, and accessories required for air distribution and system integration, made of AISI 304 stainless steel and PVC PN16.
- Connection components and internal fitting hardware necessary for proper assembly of the system inside the pre-arranged structure.
The bacterial-enzymatic blend is excluded from the supply and must be procured by the Customer according to the qualitative specifications, usage methods, and dosage levels indicated by the supplier.
Advantages
Technical advantages of the upgrade
The installation of the kit allows converting the grease trap from a tank with predominantly static operation into a compartment featuring aeration and automated process cycle management.
The main expected technical advantages are:
Dissolved oxygen supply: air diffusion through submerged fine bubble diffusers increases the air-water interface and promotes oxygen transfer into the wastewater. Fine bubble systems are commonly employed in retrofit interventions as they offer high oxygen transfer efficiency and are well suited for upgrading existing tanks.
Support for aerobic processes: the availability of oxygen fosters favorable operating conditions for the activity of aerobic microorganisms, useful for the biological transformation of biodegradable organic matter present in the wastewater.
Synergistic action with bacterial-enzymatic charge: the scheduled dosing of the bacterial-enzymatic formulation helps maintain a more constant supply of microorganisms and biocatalysts, supporting hydrolysis and biodegradation of organic and lipid components within the limits of wastewater composition, temperature, pH, contact times, and actual oxygen availability.
Reduction of anaerobic phenomena and odors: controlled management of aeration can reduce the wastewater's tendency toward septic conditions and, consequently, help contain the formation of malodorous compounds associated with stagnant or anaerobic conditions. This benefit depends on correct cycle adjustment, incoming loads, and routine maintenance of the plant.
Greater homogeneity of treated compartment: the motion induced by aeration helps limit wastewater stratification and promotes the distribution of oxygen and dosed product throughout the tank's net volume.
Automated management: the Touch PLC panel allows programming of operating cycles for both blower and dosing unit, improving operational repeatability, process adjustability, and simplicity of monitoring activities for the operator.
Material reliability: the use of AISI 304 stainless steel and PVC PN16 piping ensures mechanical strength and adequate compatibility with the installation environment and intended service, while EPDM membranes are commonly used in fine bubble aeration systems for water treatment applications;
Design for maintenance access: the layout with external blower, suction filtration, control panel, and submerged diffusion allows easy access to main electromechanical components for inspection, cleaning, adjustment, and scheduled maintenance activities.
Supply Limitations
This item exclusively covers the supply of the electromechanical upgrade for pre-delivery plants.
The following are therefore excluded:
- On-site installation, mounting, electrical, and hydraulic connections.
- Interventions on existing or already operational plants (To be evaluated with our technical staff)
- Supply of the bacterial-enzymatic blend.
- Commissioning, on-site calibration, laboratory analysis, performance testing, and discharge monitoring, unless otherwise specified in the contract.
- Routine and extraordinary management of the grease trap, including desludging, removal of separated fats, sludge extraction, tank cleaning, and periodic component maintenance.
