Made of Monoblock Vibrated Reinforced Concrete
Ideal when, due to lack of space or environmental constraints, it is impossible to build an above-ground cabin or technical room using traditional methods
Features and operating principle

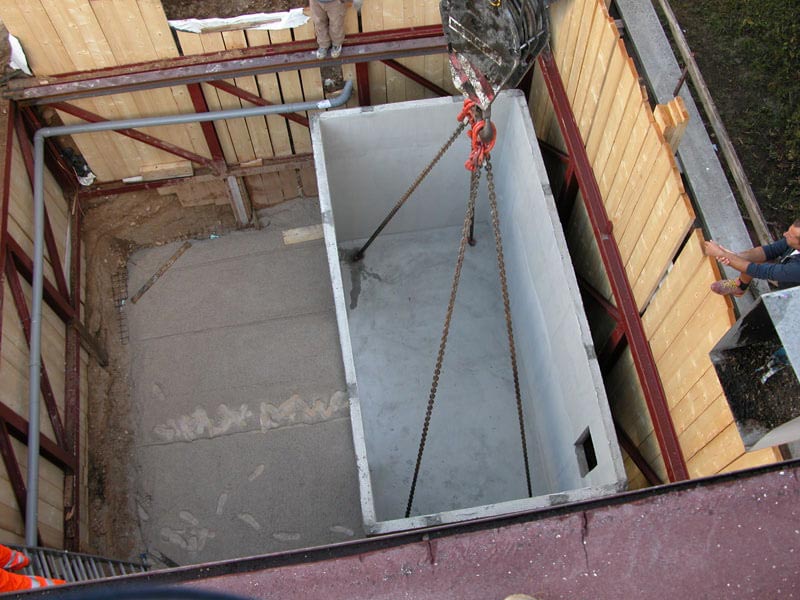

The monoblock precast cellar is an excellent solution for all situations where, due to lack of space or environmental constraints, it is inconvenient or impossible to build an above-ground cabin or technical room using traditional methods.
Precast cellars can be equipped and customized together with the customer directly at the Edil Impianti offices, with the support of a technical staff capable of advising on possible variables and solutions.
They can be used as a simple cellar or garage, or as a changing room for sports facilities, complete with accessories and systems such as heating, lighting, air conditioning, bathrooms, and showers with wall cladding, sanitary ware, and fittings.

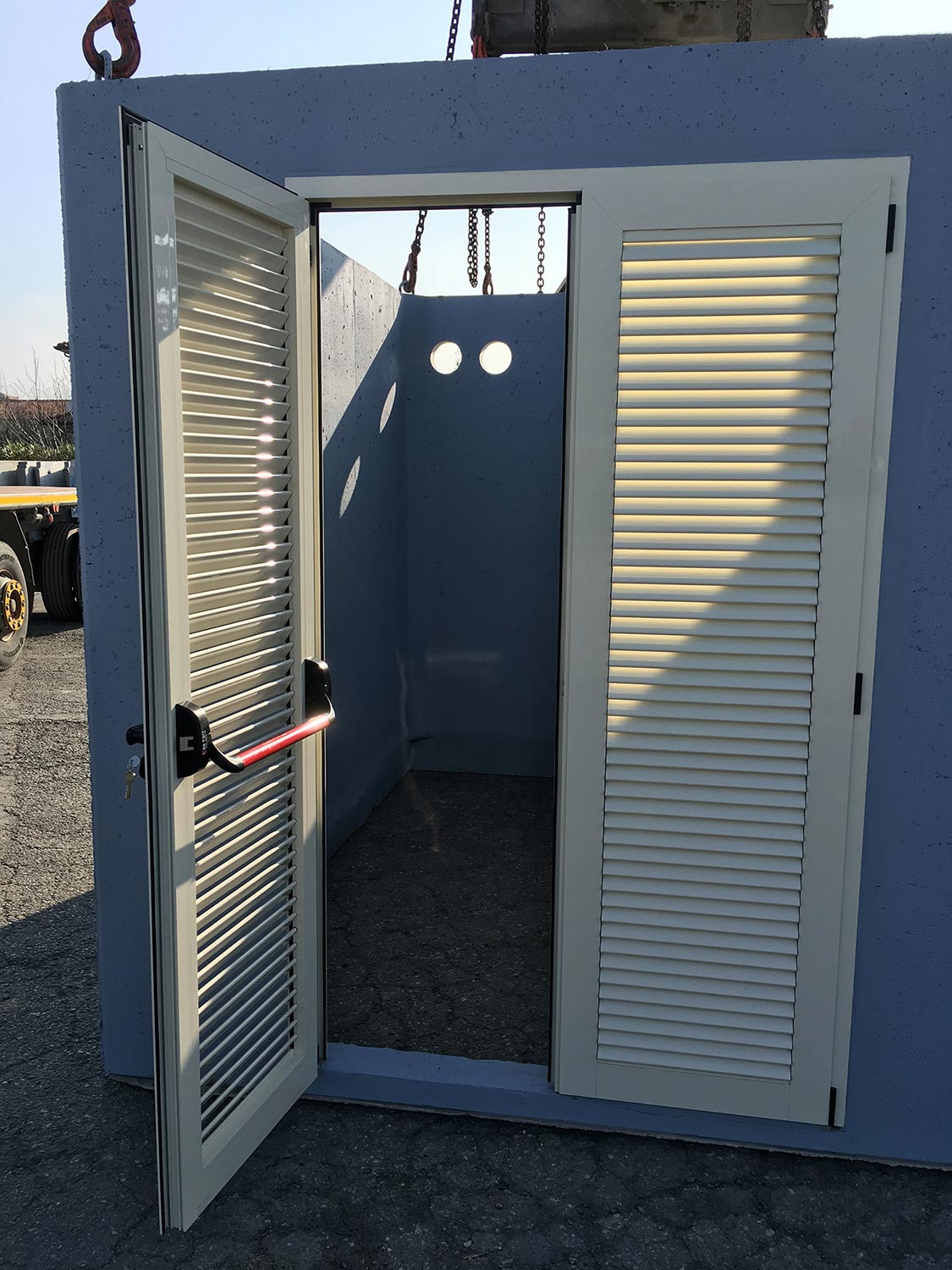

All cellars and rooms can be equipped with REI 60 and REI 120 fire doors (for rooms used as thermal power stations and/or system cabins), internal walls and partitions in reinforced concrete, plasterboard, or glass blocks, flooring and skirting boards, standard internal doors or "Scrigno" type sliding doors—all installed by specialized personnel at the Edil Impianti facility before delivery to the customer.
Upon specific request and customer requirements, we create underground cellars for wine storage and aging, complete with controlled climate systems to ensure ideal temperature and humidity, adjustable internal lighting for intensity and temperature, full internal cladding in cedar, chestnut, and oak wood, and insulated access doors with programmable locks.
Supply Specifications
Supply and installation of a Precast Cellar / Utility Room / Underground Technical Room produced in DECLARED SERIES, code CANT____, with external dimensions of cm.____x____xh____, produced by EDIL IMPIANTI 2 S.r.l. with a UNI EN ISO 9001 and ISO 45001 management system, made of monobloc Vibrated Reinforced Concrete, reinforced with vertical pillars and horizontal braces in stainless steel, with protective anti-cracking elastomeric paint Elastocolor on the external concrete walls with high permanent elasticity and high chemical resistance, concrete in compression resistance class C45/55 (RCK >55 N/mm²), internal reinforcements in factory-controlled improved adherence steel and B450C square mesh welded wire fabric, complete with CHEMICAL RESISTANCE and REACTION TO FIRE (class: A1) certifications issued by an external body according to UNI EN standards.
View accessories related to the Specifications
Configure the Supply Specification with the related accessories.
Precast Cellar Services - Technical Room Dimensions
| Article Code |
Precast Cellar External Dimensions (cm) |
Precast Cellar weight (ql) |
Cover slab weight (ql) | ||||
| Width | Length | Height | h. 10 cm (B125) |
h. 15 cm (C250) |
h. 20 cm (D400) |
||
| CANT20 | 246 | 220 | 250 | 80,2 | 13,4 | 20,2 | 26,9 |
| CANT21 | 246 | 270 | 250 | 91,4 | 16,5 | 24,7 | 33,0 |
| CANT22 | 246 | 320 | 250 | 102,5 | 19,6 | 29,3 | 39,1 |
| CANT23 | 246 | 370 | 250 | 113,7 | 22,6 | 33,9 | 45,2 |
| CANT24 | 246 | 420 | 250 | 124,9 | 25,7 | 38,5 | 51,3 |
| CANT25 | 246 | 470 | 250 | 141,5 | 28,7 | 43,1 | 57,4 |
| CANT26 | 246 | 520 | 250 | 152,7 | 31,8 | 47,7 | 63,6 |
| CANT27 | 246 | 570 | 250 | 163,9 | 34,8 | 52,2 | 69,7 |
| CANT28 | 246 | 620 | 250 | 175,1 | 37,9 * | 56,8 * | 75,8 * |
| CANT29 | 246 | 670 | 250 | 186,2 | 40,9 * | 61,4 * | 81,9 * |
| CANT30 | 246 | 720 | 250 | 202,8 | 44,0 * | 66,0 * | 88,0 * |
| CANT31 | 246 | 770 | 250 | 214,0 | 47,1 * | 70,6 * | 94,1 * |
| CANT32 | 246 | 820 | 250 | 225,2 | 50,1 * | 75,2 * | 100,2 * |
| CANT33 | 246 | 870 | 250 | 236,4 | 53,2 * | 79,7 * | 106,3 * |
| CANT34 | 246 | 920 | 250 | 247,6 | 56,2 * | 84,3 * | 112,4 * |
| CANT35 | 246 | 970 | 250 | 264,2 | 59,3 * | 88,9 * | 118,5 * |
* Cover Slab divided into two parts
The data reported is purely indicative
