The Bigger the Capacity, the Lower the Price
Based on the increasingly stronger demand for bigger collection capacities and water reservoir volumes and the need for optimizing costs and installation times, Edili Impianti 2 - leading company in precast concrete structures for water treatment systems - introduced IDRIKA.

Why you should choose Idrika?
Because it is just Easy, Large, Quick and Safe.

It is a revolutionary system used to set up large or very large water collection reservoirs, from 100 up to 2000 cubic metres.
As usual, our products are designed to be installed underground as well as on the ground.
Guaranteed to be 100% carriageable and can also be installed underground for exceptional needs.

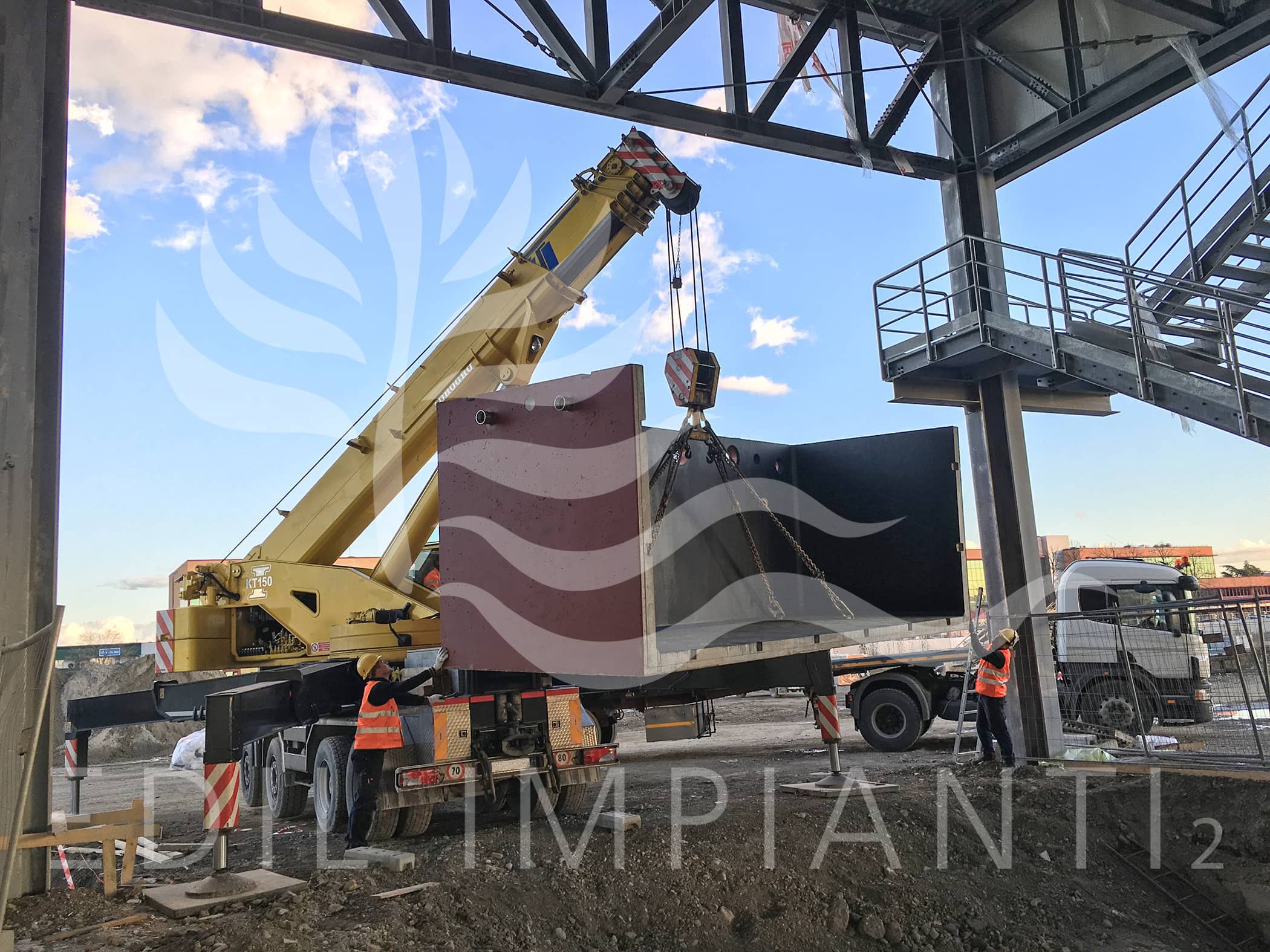

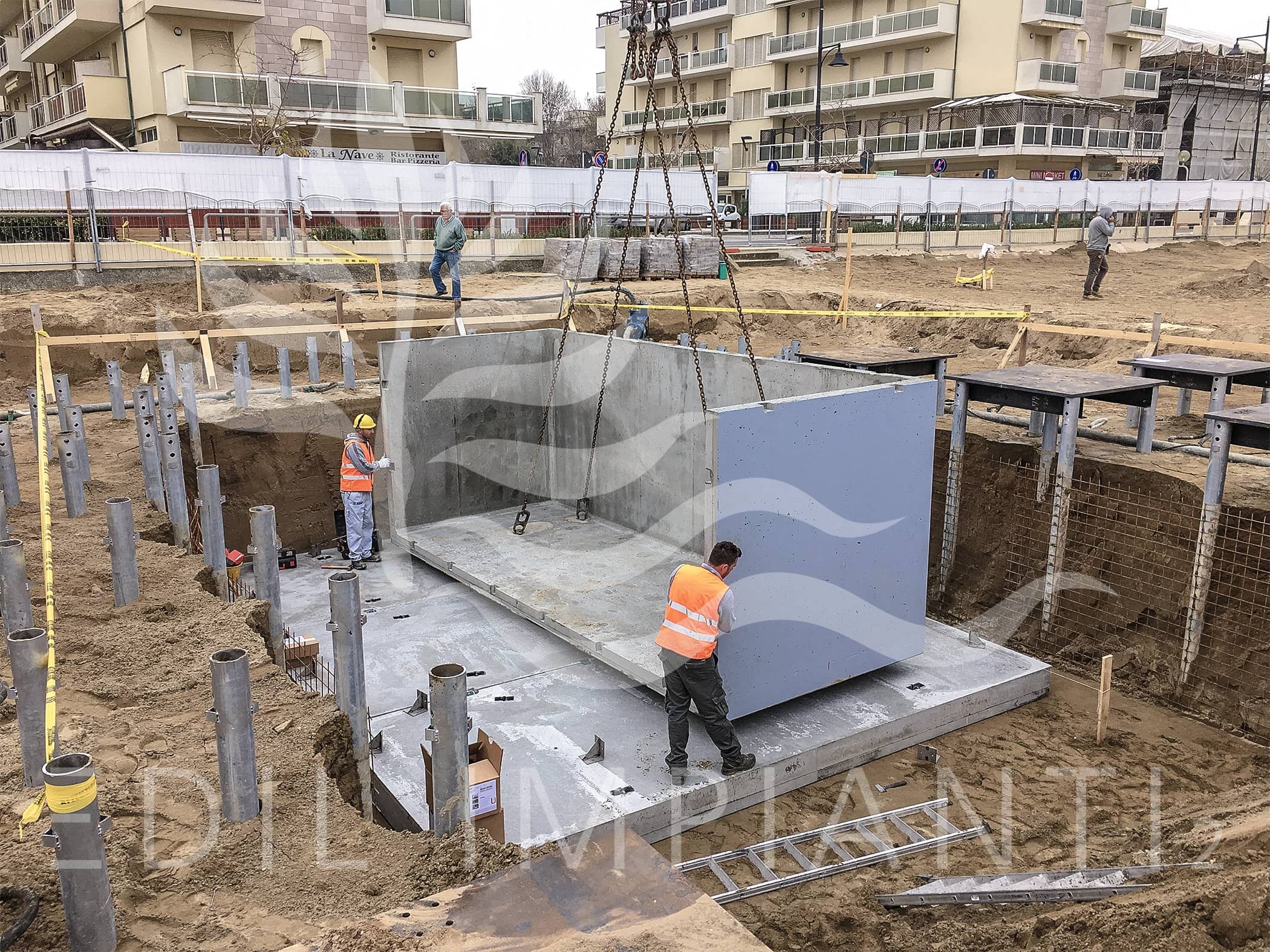

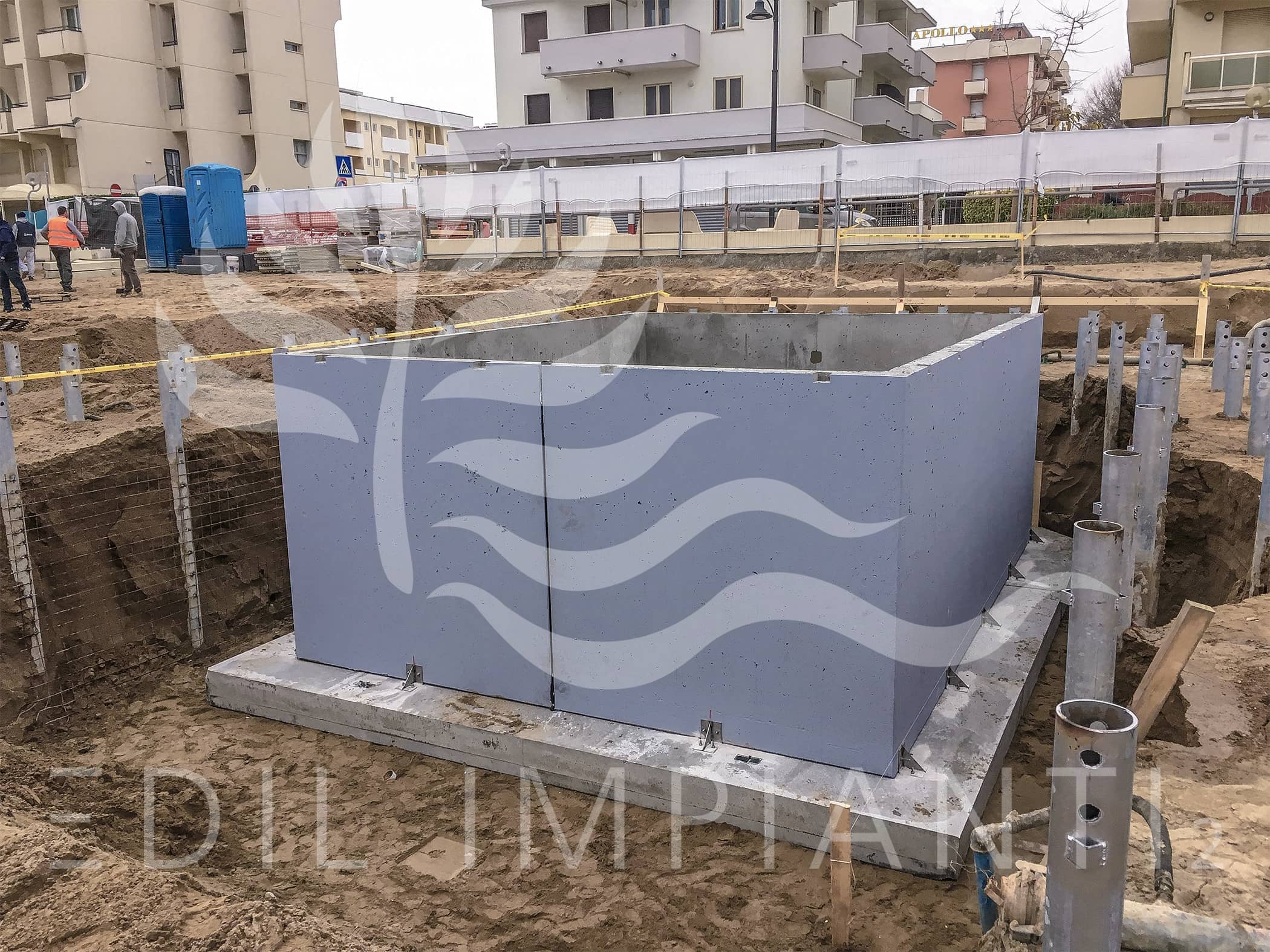

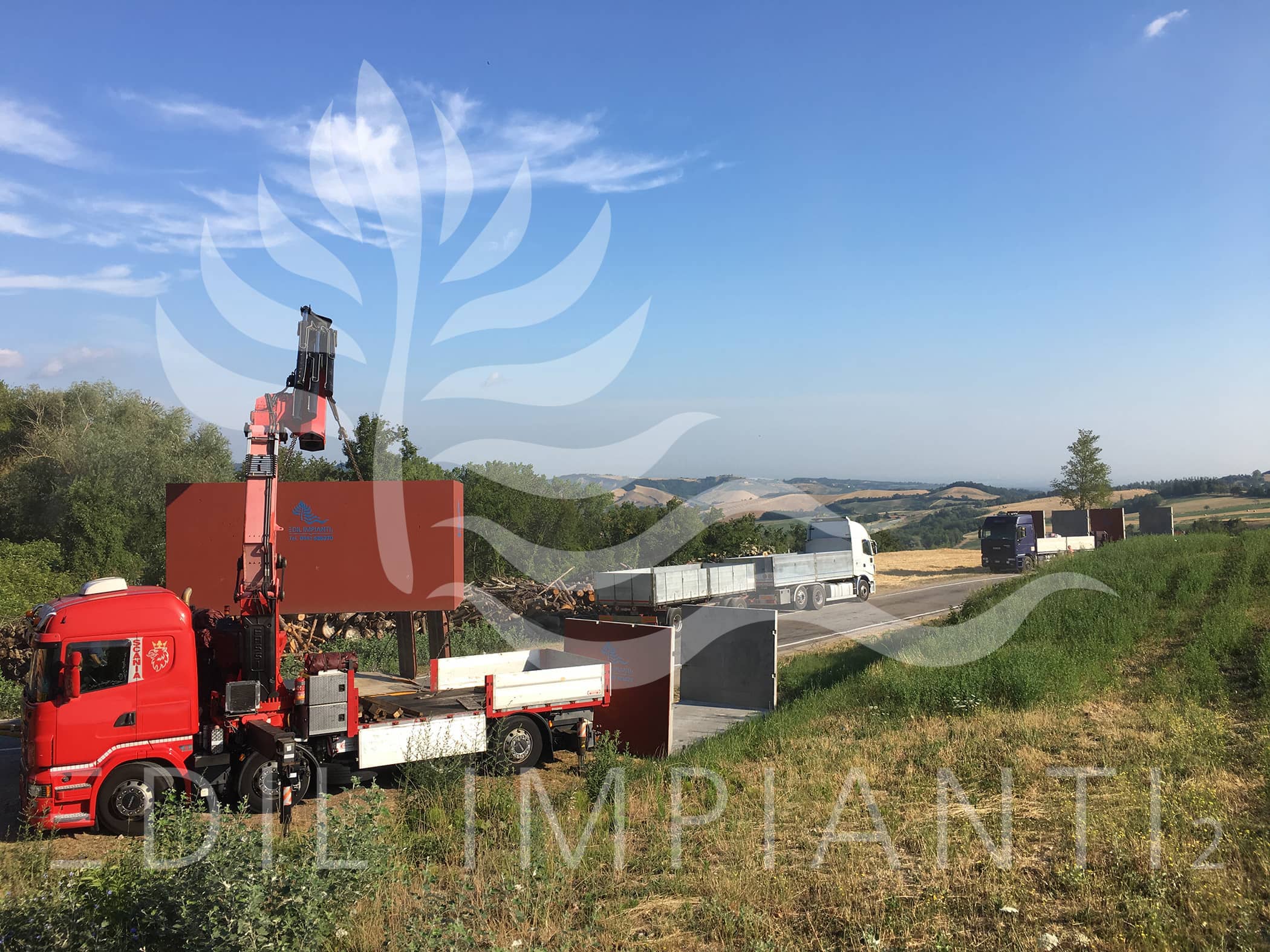

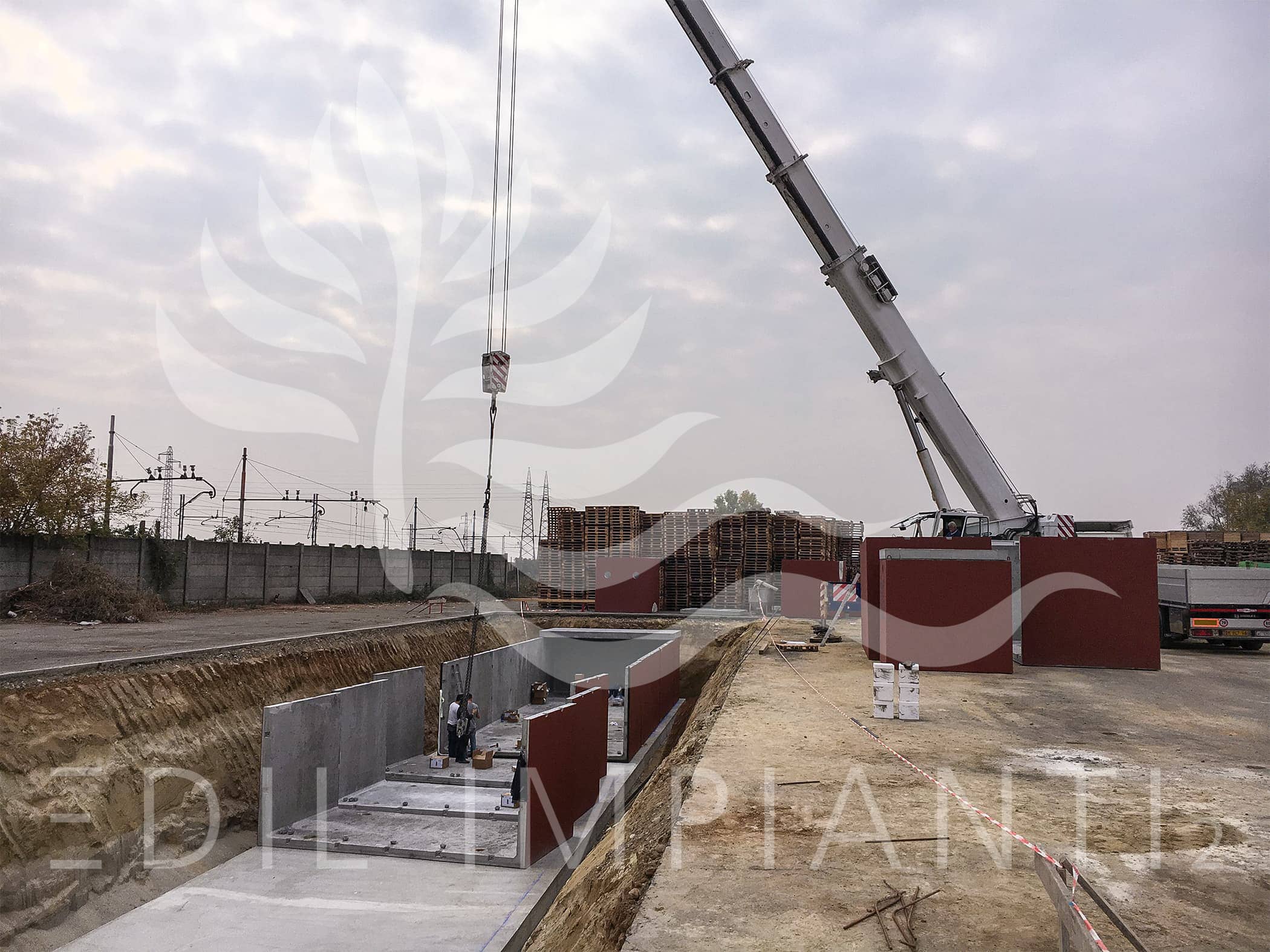

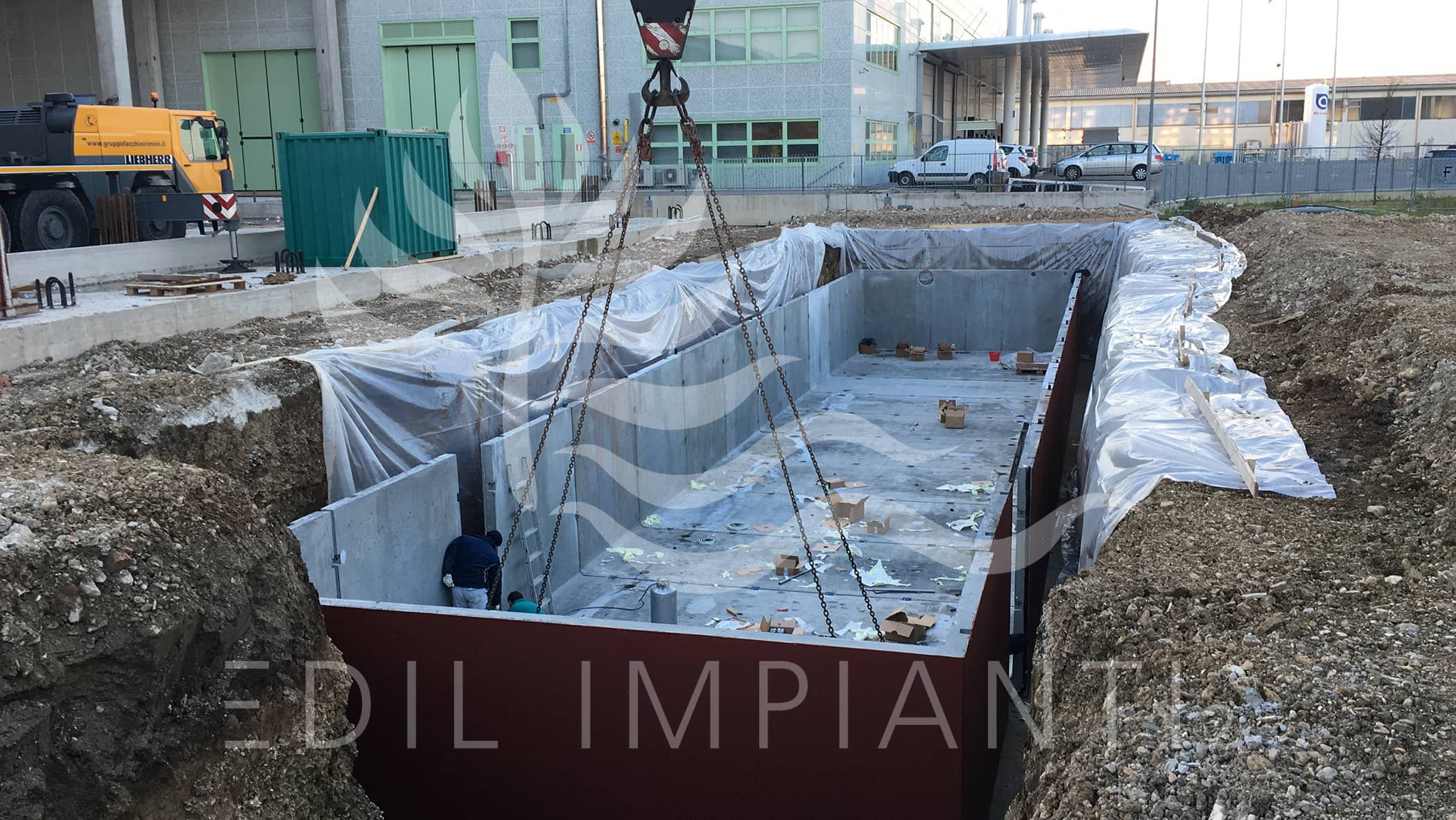

Quick installation, reduced weight and easy assembly are the IDRIKA system's strengths.
Our technical staff are always available to study the best solution at the best price.
IDRIKA's materials and accessories are tested and selected to ensure unrivalled durability.

IDRIKA is available in two versions

Fibre-reinforced vibrated concrete
Made with fibre-reinforced vibrated concrete manufactured with CE-merked materials with compression strength class C45/55 - C50/60.
Self-compacting Concrete SCC
Made of Self-compacting Concrete (SCC) with compression strength class C45/55 C50/60 -C60/75.

Compliant with the UNI EN 206-1 standards for exposure class XC4 (resistance against carbonatation-induced corrosion), XS3-XD3 (resistance against chloride-induced corrosion, also from marine origin), XF3 (resistance against frost/thaw cycles with or without de-icing salts), XA3 (chemically aggressive environment), sulphate attack resistance of high-performance concrete (HPC). Compliant with UNI 9156 standard, classified as "sulphate attack resistance of high-performance concrete", internal improved-adhesion steel reinforcements checked in our plant and electro-welded square mesh B450C.

To produce IDRIKA, GREESMIX5® steel fibres (Patent No. 0001421398 issued by the Italian Ministry for Economic Development) are also used. It is a patent-protected system owned by Edil Impianti 2.

IDRIKA Precast Water Collection System manufactured in DECLARED SERIES for _______ cubic metres, composed of: IDRIKA ___C C-shaped module start/end (No. ___ elements) and IDRIKA ___U U-shaped module central (No. ___ elements), external dimensions of each element: _____ by _____by h ____ cm, manufactured by EDIL IMPIANTI 2 S.r.l. with UNI EN ISO 9001 and ISO 45001 management system, made with vibrated reinforced concrete and CE-marked materials in compression resistance class C45/55 - C50/60 N/mm², or in SCC (Self-Compacting Concrete) with silica fume additive in compression resistance class C45/55 - C50/60 - C60/75 N/mm², compliant to UNI EN 206-1 standard for exposure class XC4 (resistance against carbonatation-induced corrosion), XS3-XD3 (resistance against chloride-induced corrosion, also from marine origin), XF3 (resistance against frost/thaw cycles with or without de-icing salts), XA3 (chemically aggressive environment), sulphate attack resistance of high-performance concrete (HPC). compliant with the UNI 9156 standard, classified as "sulphate attack resistance of high-performance concrete" which can be enriched on demand with the additive IDROCONCRETE 1200: integral-system crystallization concrete waterproofing admixture, internal improved-adhesion steel reinforcements checked in our plant, ABOVE-GROUND tank REINFORCEMENTS with GREESMIX5® steel fibres and electro-welded square mesh B450C, with certification of CHEMICAL RESISTANCE and REACTION TO FIRE (Class A1) issued by an external body based on UNI EN standards.

To complete the system:

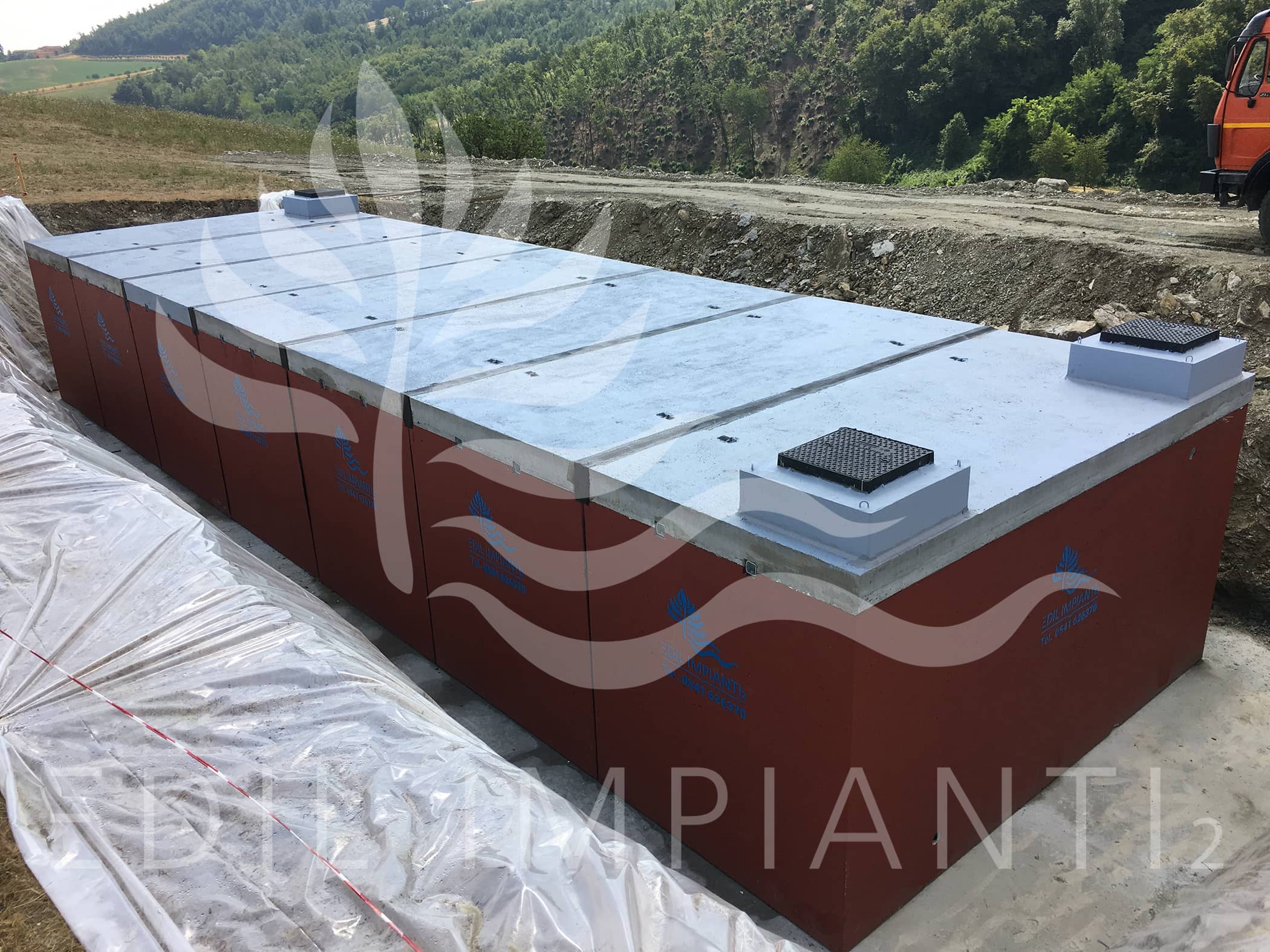

No._____ IDRIKACOP___-25 carriagable cover slabs, H=25 cm for 1st category loads with inspection holes for cast-iron manhole covers (cast-iron not included);
certified coupling brackets, complete with hardware;

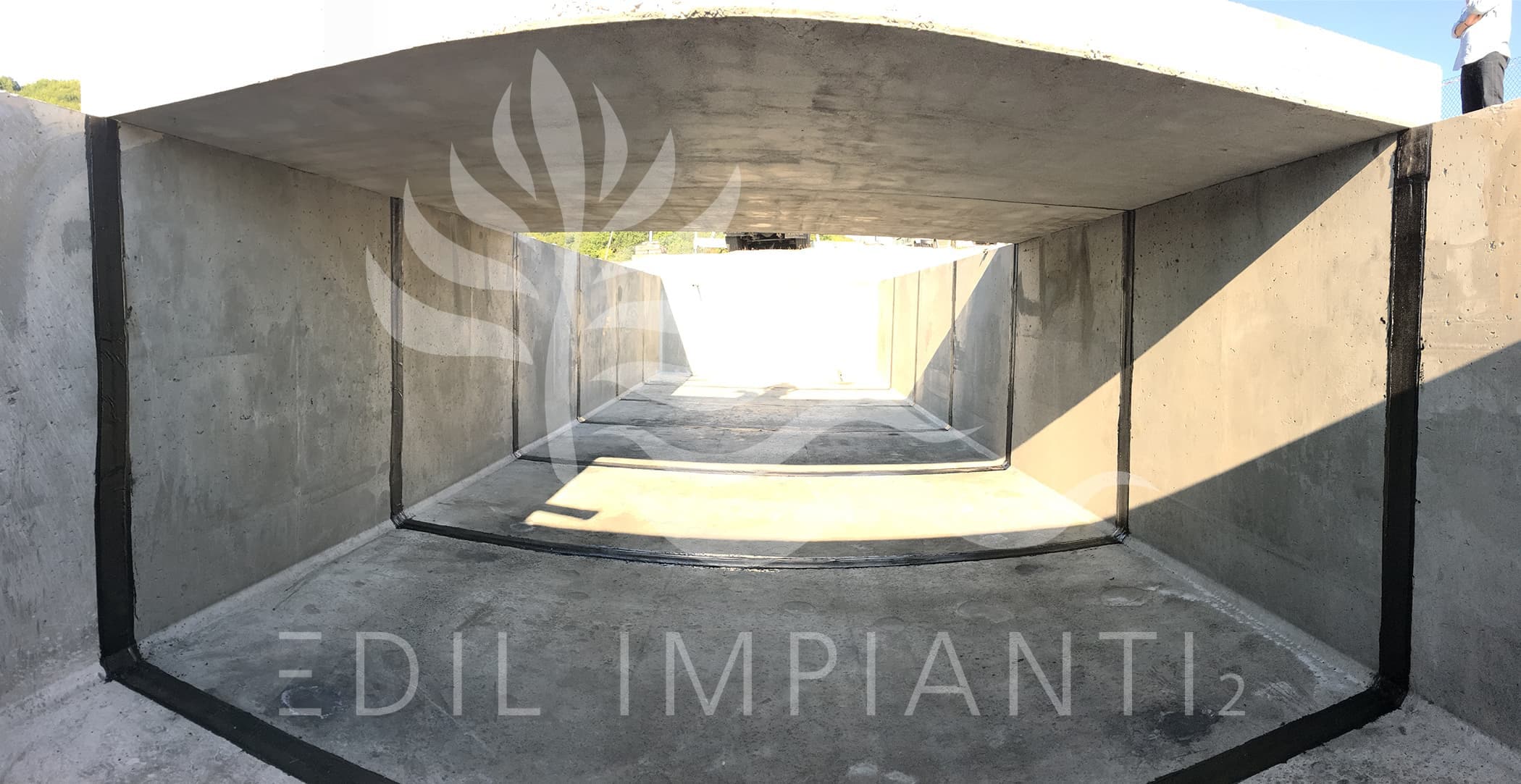

38x32mm hydraulic gasket manufactured with special rubber compound for sealing precast vibrated reinforced concrete joints. as prescribed in DIN 18195 part 4 - 6 and suitable for contact with acidic or alkaline substances;
joint finishing and sealing material (Mapefoam, Mapeflex, Mapegrout);

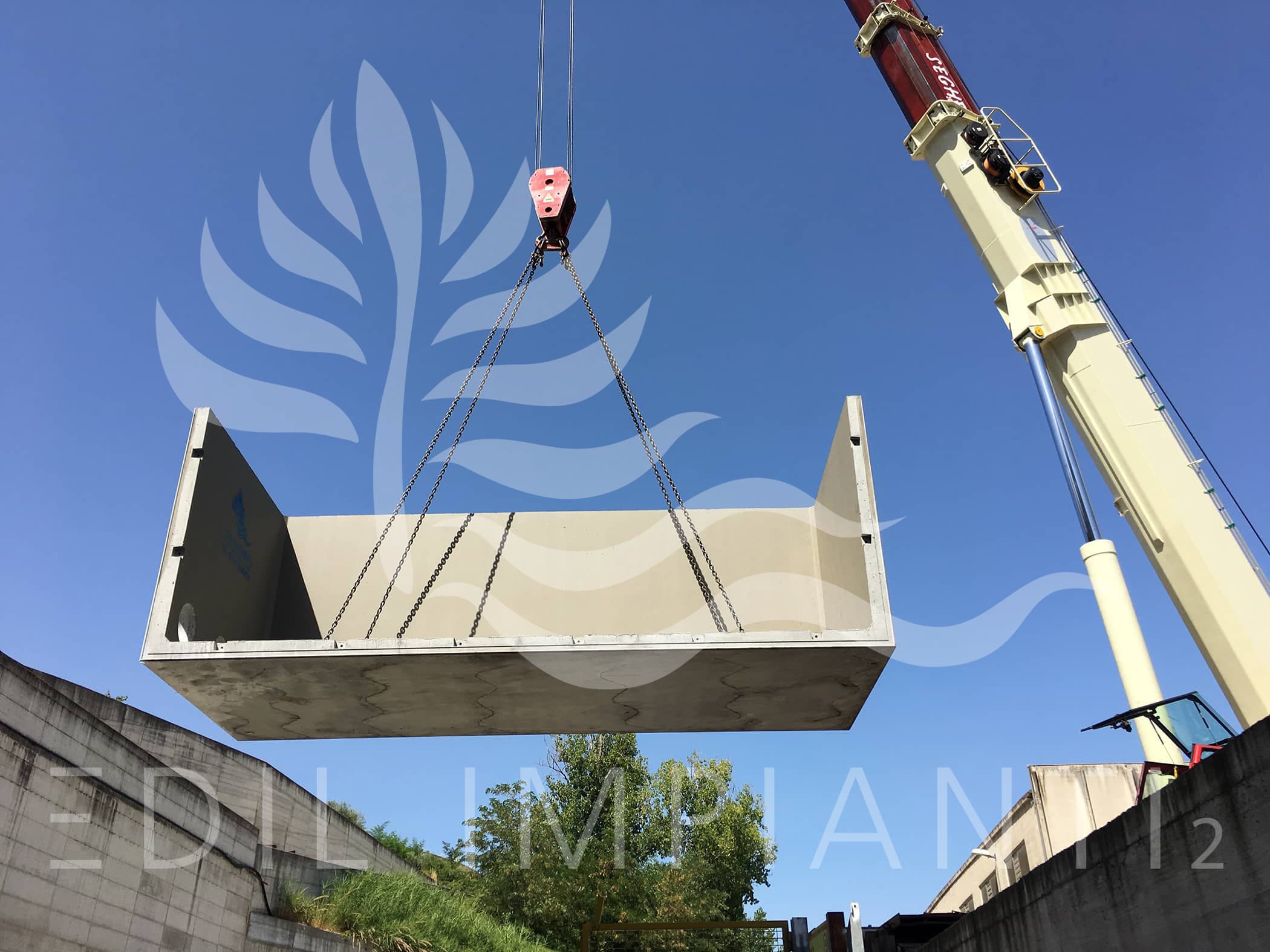

Rental of a lifting kit mod. DEHA class 10, made up of 4 handles, bearing the CE marking MD 2006/42/FC.

IDRIKA Dimensions:

volume: cubic metres.______;
single element: cm.___x___x___+__;
total dimensions: cm._____x_____x_____+___.

Weight of the different elements:

No.__ IDRIKA___C elements, individual weight: quintals.___;
No.__ IDRIKA___U elements, individual weight: quintals.___;
No.__ IDRIKACOP___-25 cover slabs, individual weight: quintals.__.

Select Article Code to access the Data Sheet for the product.

Article Code

View table

Download table

Article Code	Total volume (mc)	Idrika External Dimensions (cm)			Tank Weight (ql)	Cover slab Code	Cover slab weight h25 D400
Article Code	Total volume (mc)	Width	Length	Height	Tank Weight (ql)	Cover slab Code	Cover slab weight h25 D400
IDRIKA430C	22	246	430	250	128	IDRIKACOP430C-25	47
IDRIKA530C	27	246	530	250	147	IDRIKACOP530C-25	57
IDRIKA630C	33	246	630	250	165	IDRIKACOP630C-25	67

IDRIKA430U	23	246	430	250	90	IDRIKACOP430U-25	47
IDRIKA530U	29	246	530	250	99	IDRIKACOP530U-25	57
IDRIKA630U	35	246	630	250	108	IDRIKACOP630U-25	67

The data reported is purely indicative

Configurator

Calculate your ideal Idrika here

Please enter the required cubic metre amount for your water collection system

Processing

Incorrect input

Possible solutions

Technical Solutions

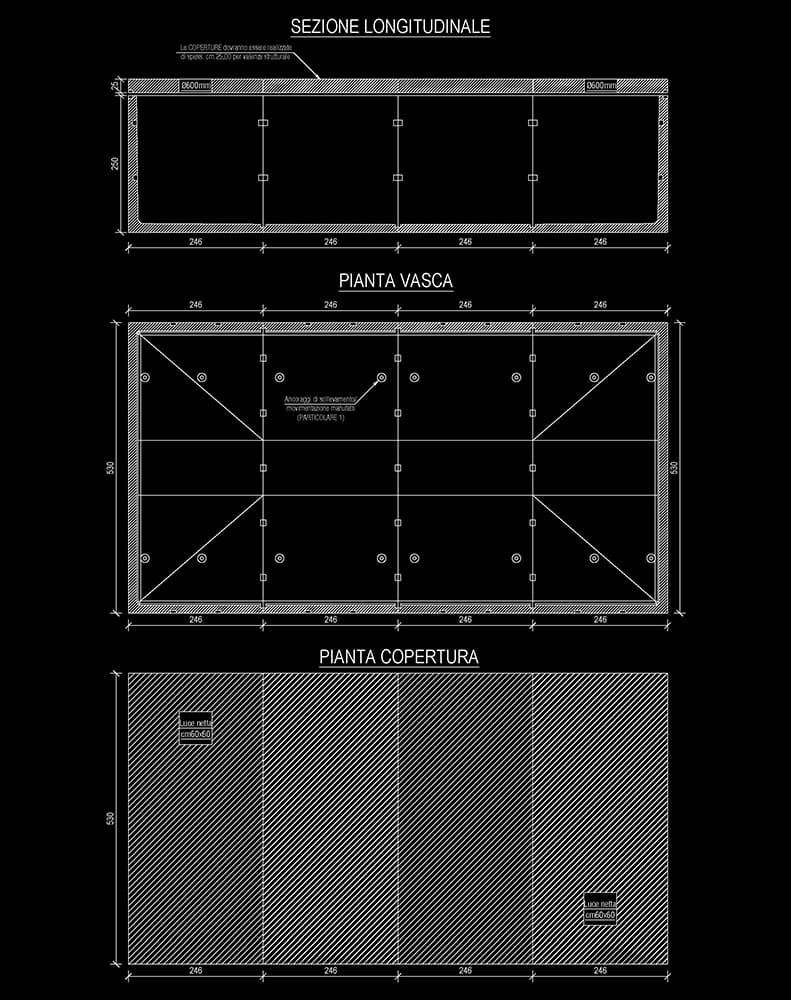

Stormwater attenuation tank with modular elements, large water collection reservoirs

Modular stormwater attenuation tank system/reservoir with IDRIKA430 elements;

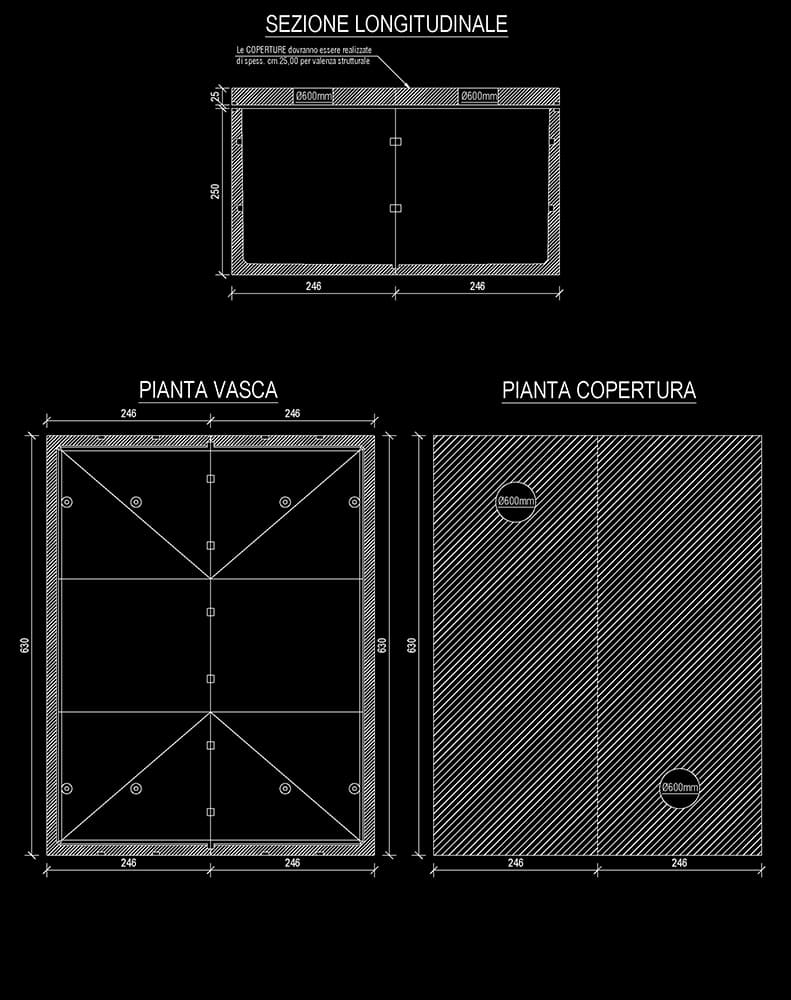

Water reservoir - Fire-fighting room from 300 up to 1000 cubic metres

IDRIKA630 elements for technical rooms for fire-fighting pressure booster sets and water reservoirs;

Stormwater attenuation tank for rainfall management

IDRIKA530 modular/box system for stormwater attenuation tanks and rainwater treatment systems and tanks;

Solution with Idrika 430

Code products

No. Modules

Total Volume

Request quote

IDRIKA430C

IDRIKA430U

Request quote
